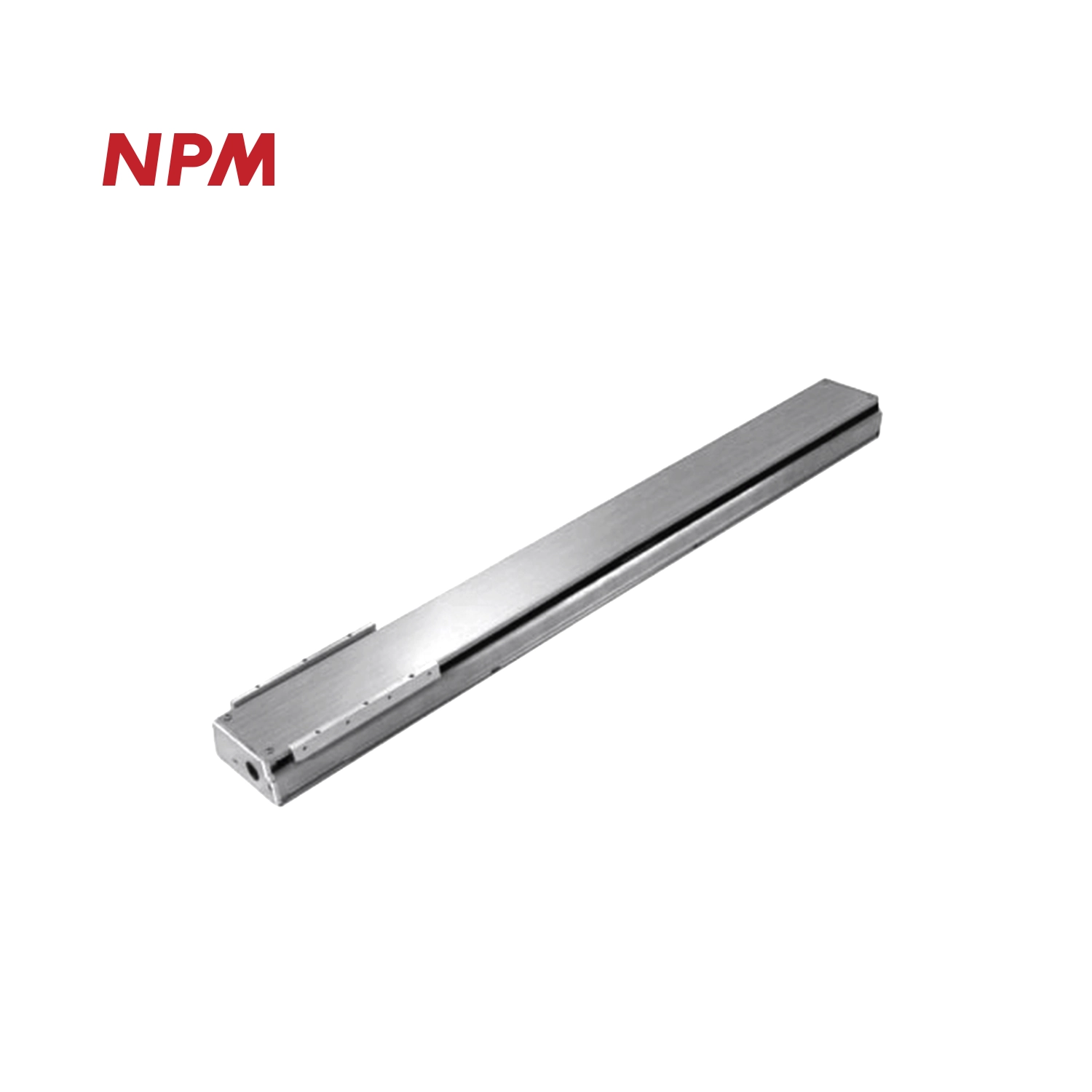

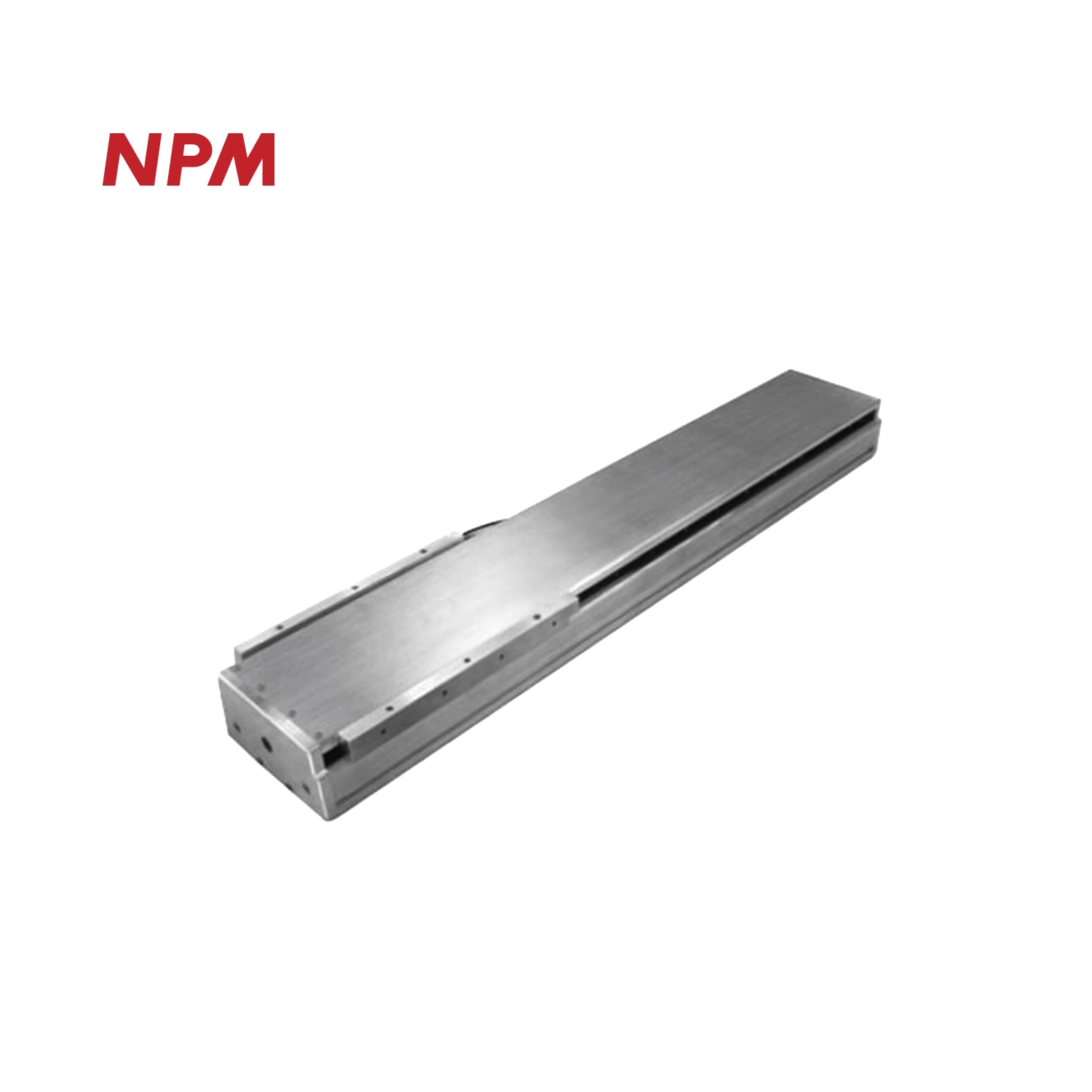

NPM SLP Series Single-Axis Sliders

Nippon Pulse Motor (NPM) SLP Series Single-Axis Sliders are high-speed linear motion stages designed for precise positioning and long-stroke movement. The compact slider design provides smooth motion with easy installation and maintenance.

The SLP Series includes SLP15, SLP25 and SLP35 models. Single-slider and double-slider configurations are available. Depending on the model, rated thrust ranges from 17 N to 185 N, with peak thrust up to 970 N. The sliders provide a resolution of 0.001 mm and maximum speeds of up to 3 m/s. Stroke lengths range from 100 mm to 1,300 mm, depending on the model and configuration.

The SLP Series supports maximum horizontal payloads from 5 kg to 60 kg. It is suitable for high-speed transport, precision positioning, production lines and automated equipment.
