NPM PJP Series HB Stepping Motors

Nippon Pulse Motor (NPM) PJP Series HB Stepping Motors are high-resolution, high-torque hybrid stepping motors for precise rotary motion. They are designed for applications where conventional PM stepper motors may not provide sufficient resolution or torque.

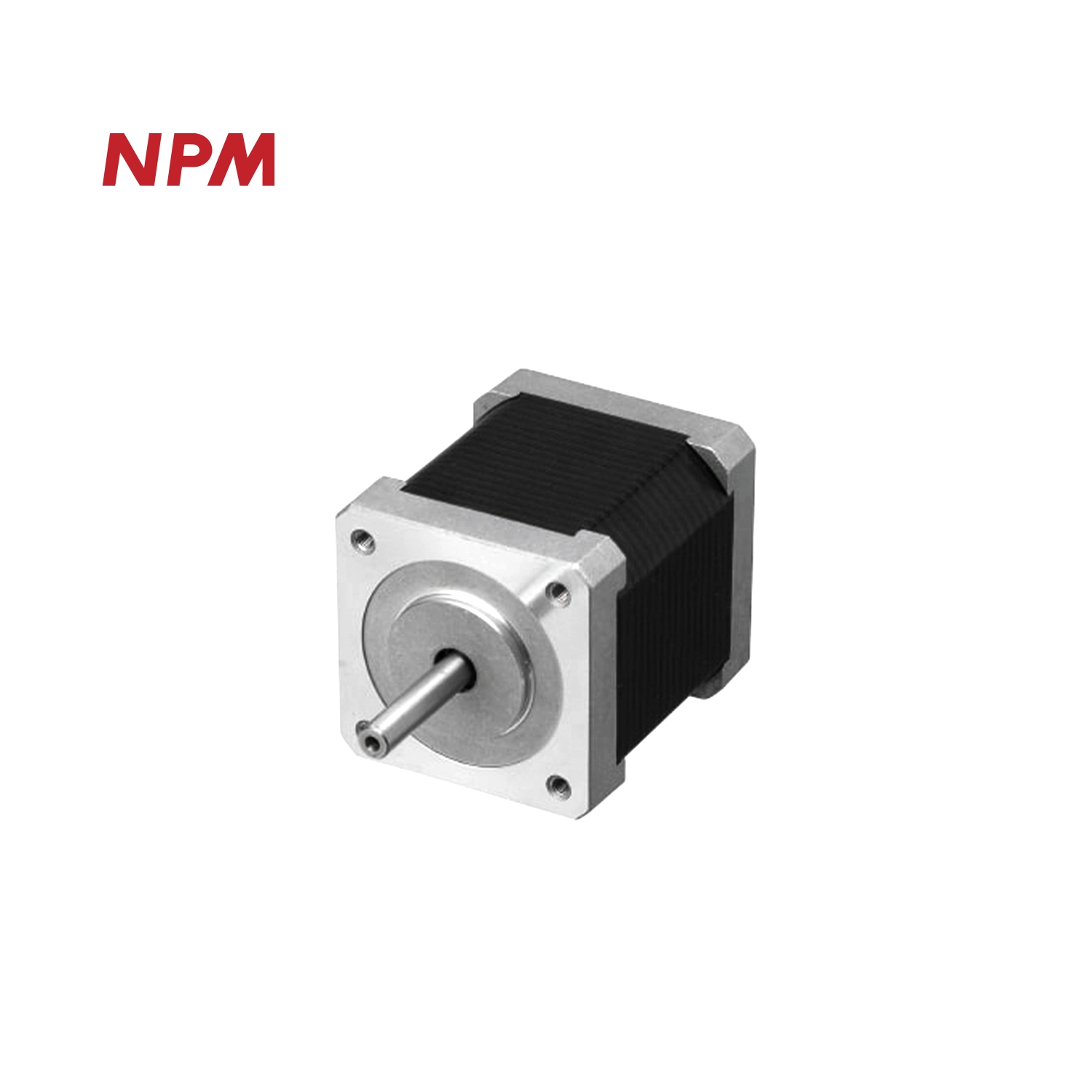

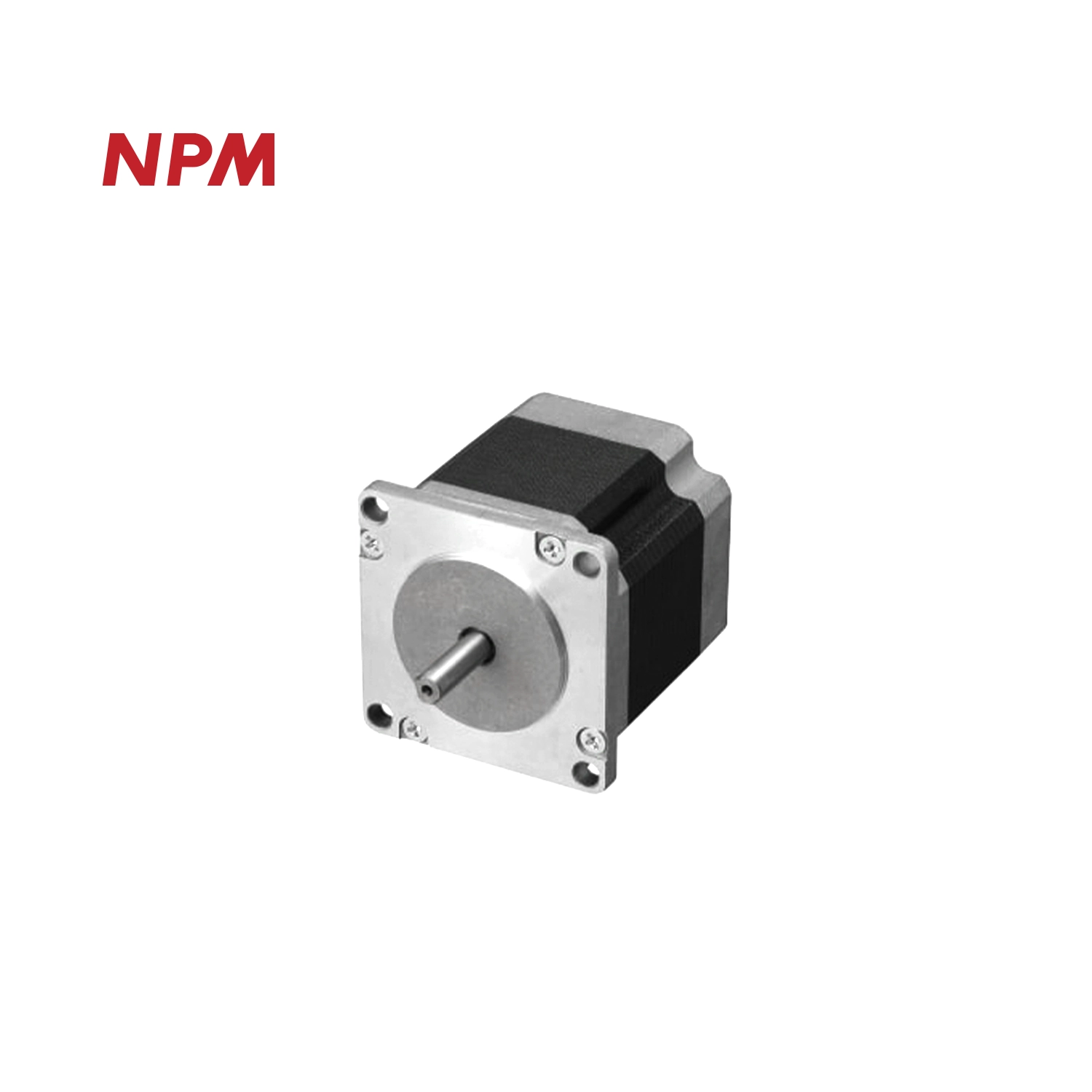

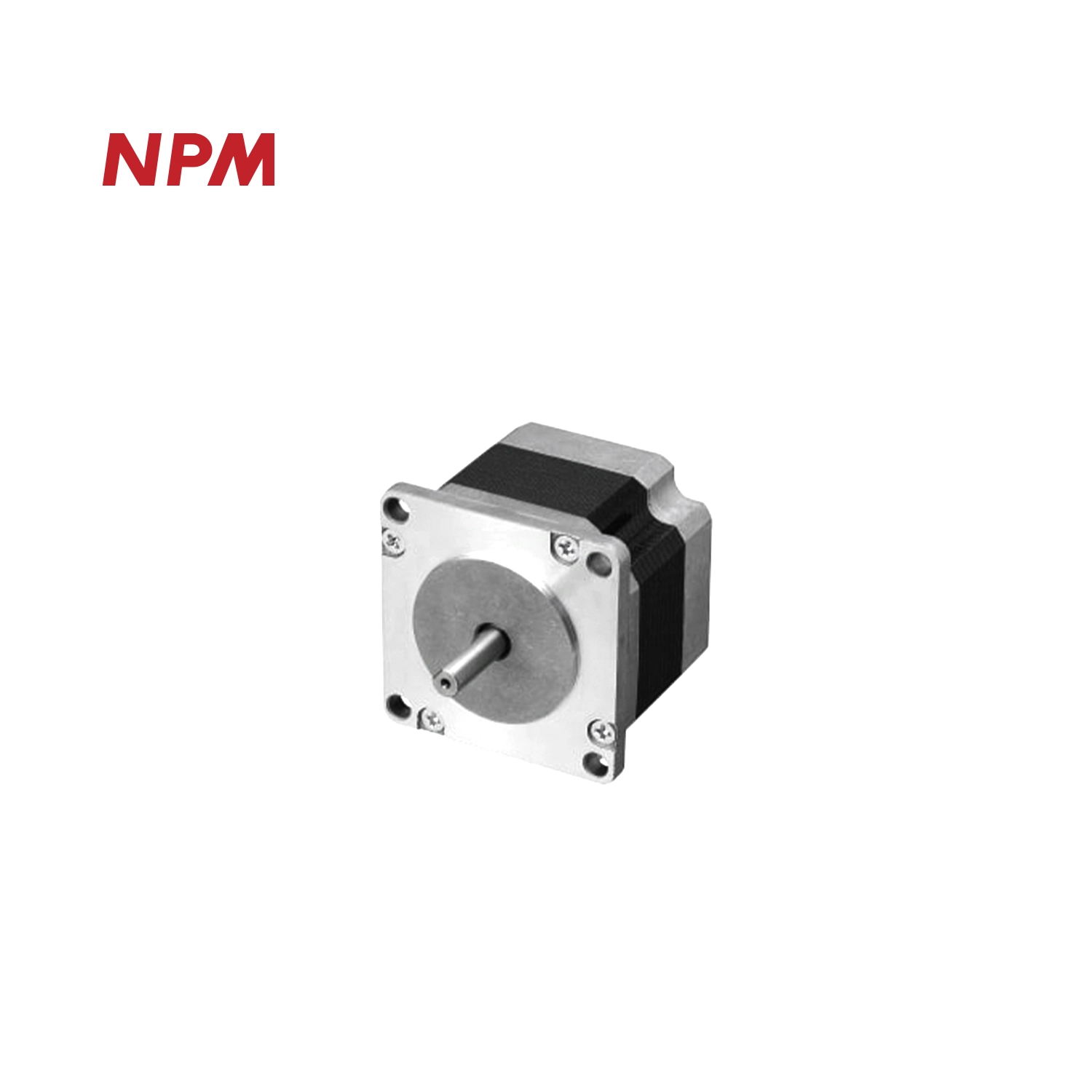

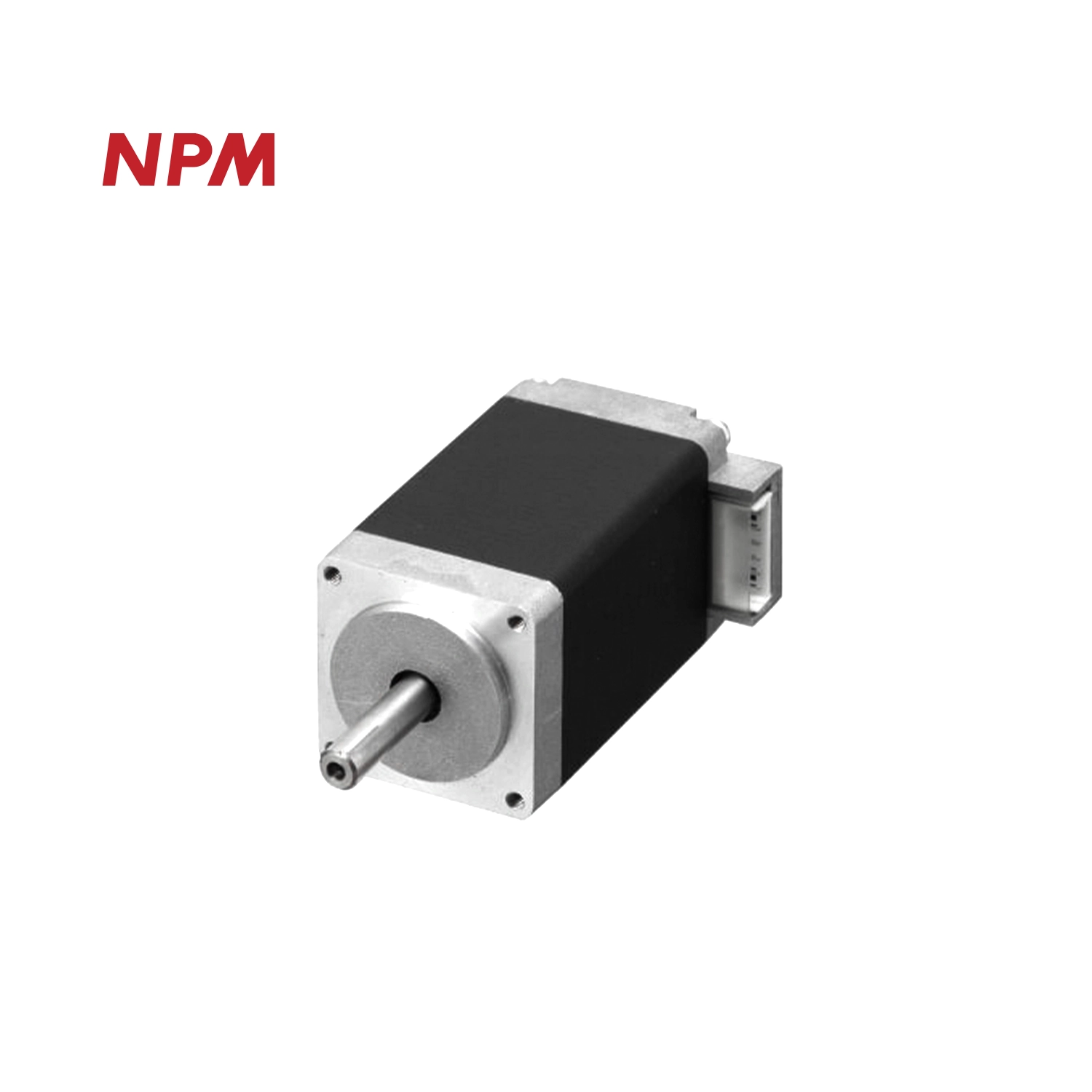

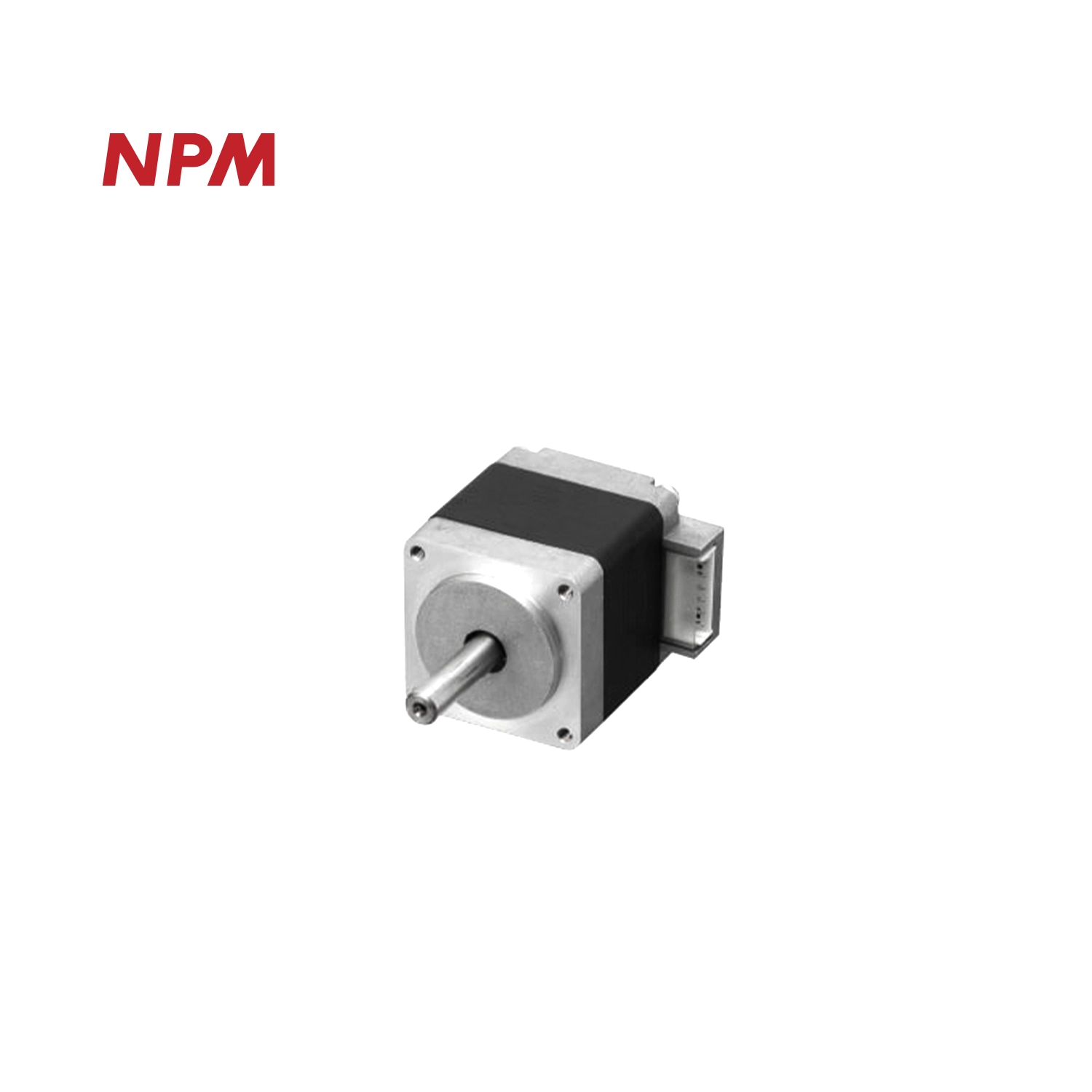

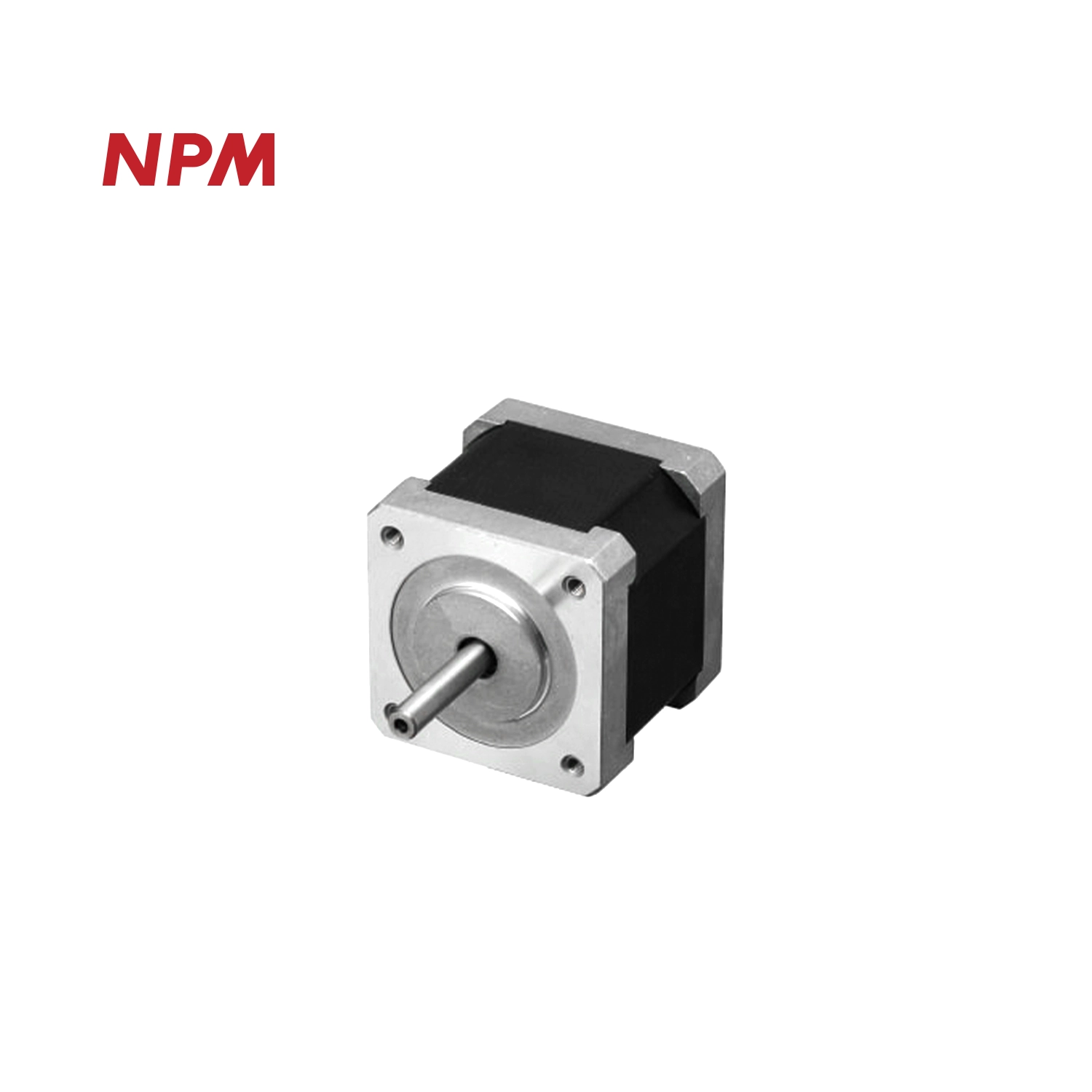

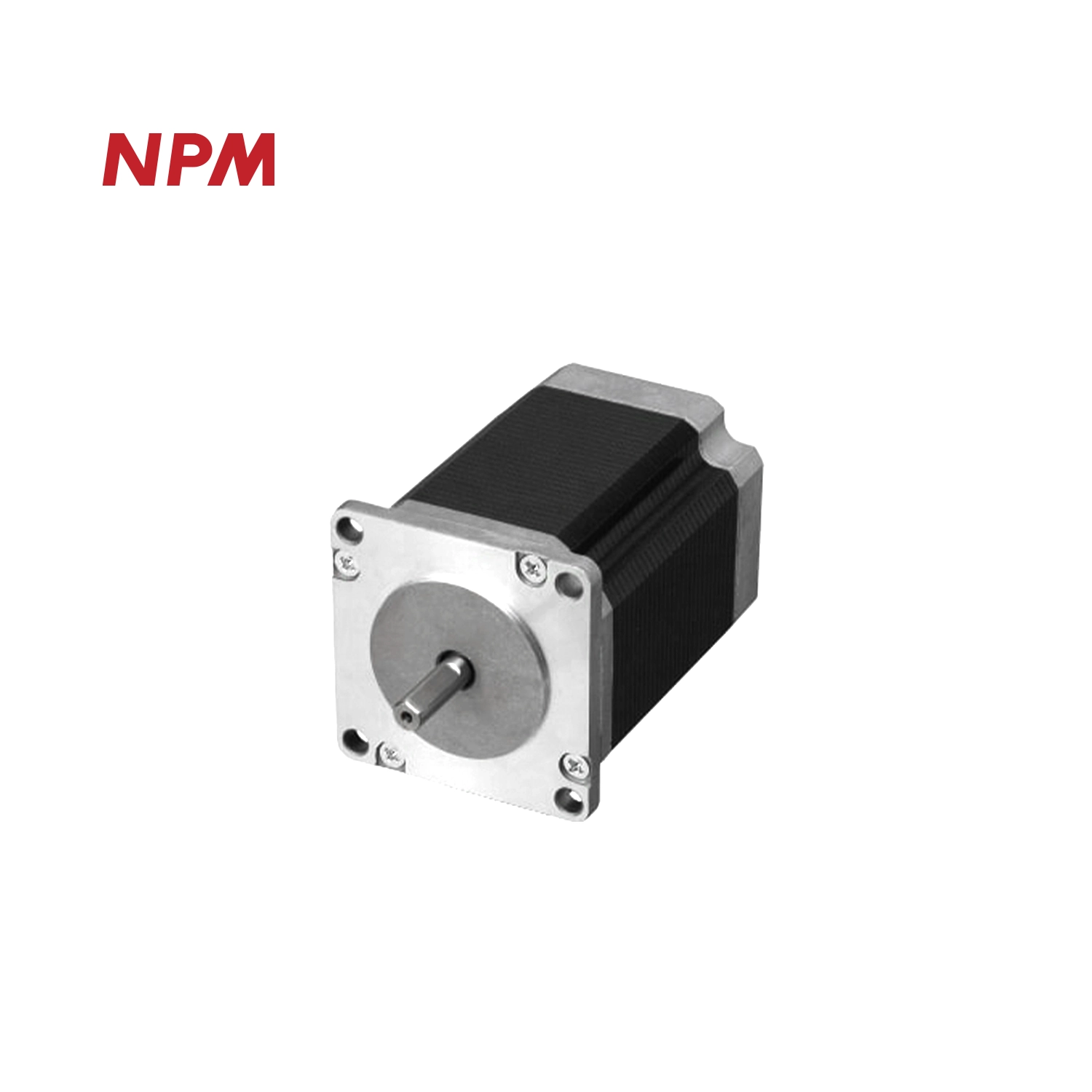

The series includes PJP28T, PJP42T and PJP56T models with a 1.8° step angle and 200 steps per revolution. Motor lengths range from 32 mm to 78 mm, depending on the model. Maximum static torque ranges from 45 mN·m to 1,300 mN·m across the available models. The motors use 2-phase hybrid construction and are available with unipolar windings.

The PJP Series is suitable for precision positioning, automation equipment and other motion control applications requiring reliable rotary stepping motion.
