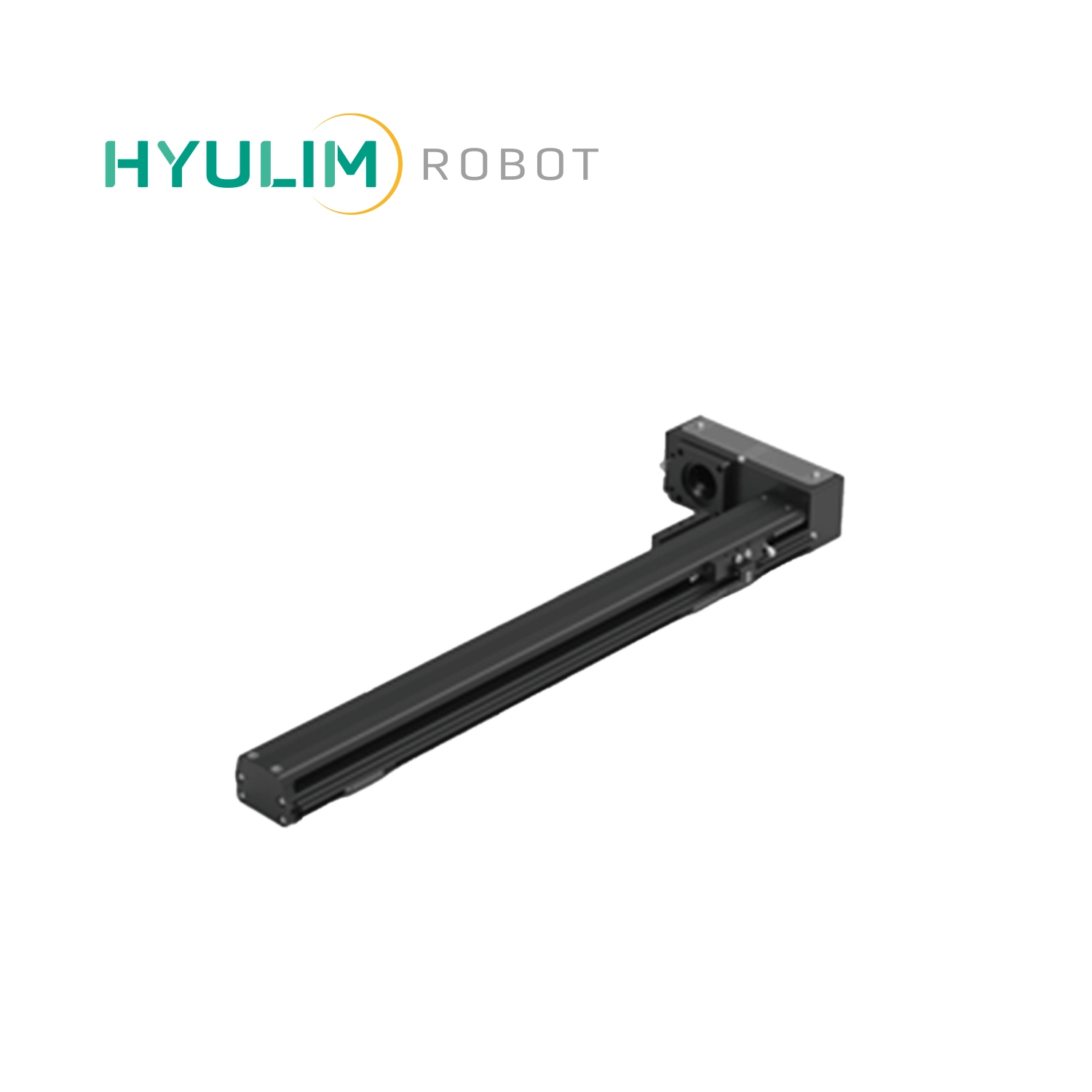

Hyulim Robot DRG Series Cartesian Robot

The Hyulim Robot DRG Series is a compact Cartesian robot designed for precise linear motion. The series is available in parallel and direct motor configurations to suit different machine layouts. The DRG Series offers different base widths, motor types, encoder options, leads and stroke lengths. Parallel models include the DRG40C-P, DRG50C-P and DRG60C-P, with strokes from 50 mm to 800 mm and horizontal payloads up to 17 kg.

Direct models include the DRG30C-S, DRG40C-S, DRG50C-S, DRG60C-S and DRG90C-S. Depending on the model, speeds reach up to 1,000 mm/s, strokes extend up to 1,000 mm and horizontal payloads reach up to 30 kg. The DRG90C-S provides repeatability of ±0.01 mm with a grinding screw.

The DRG Series supports different encoder, stroke and sensor options. It is suitable for automated positioning, handling and other applications requiring precise linear movement.
