FBL / E Series Slide Rail

Slide Rails are cost-effective finite linear guides manufactured from precision roll-formed steel plate. Their thin, compact profile and easy mounting make them suitable for a wide range of applications where space efficiency and smooth linear motion are required. Slide rails are commonly used in photocopiers, measuring instruments, telecommunication equipment, medical devices, vending machines, and office equipment.

The series is available in multiple configurations to suit different load requirements, including single-slide and double-slide types, as well as linear-type slide rails.

Model FBL Slide Rail
The FBL model features two rows of ball bearings arranged between an inner rail and an outer rail, both precision roll-formed from steel plate. The balls are evenly spaced by a precision press-molded cage, which prevents contact between adjacent balls and reduces friction. This structure ensures smooth, stable sliding motion and reliable performance across light to heavy load applications.

Available Configurations

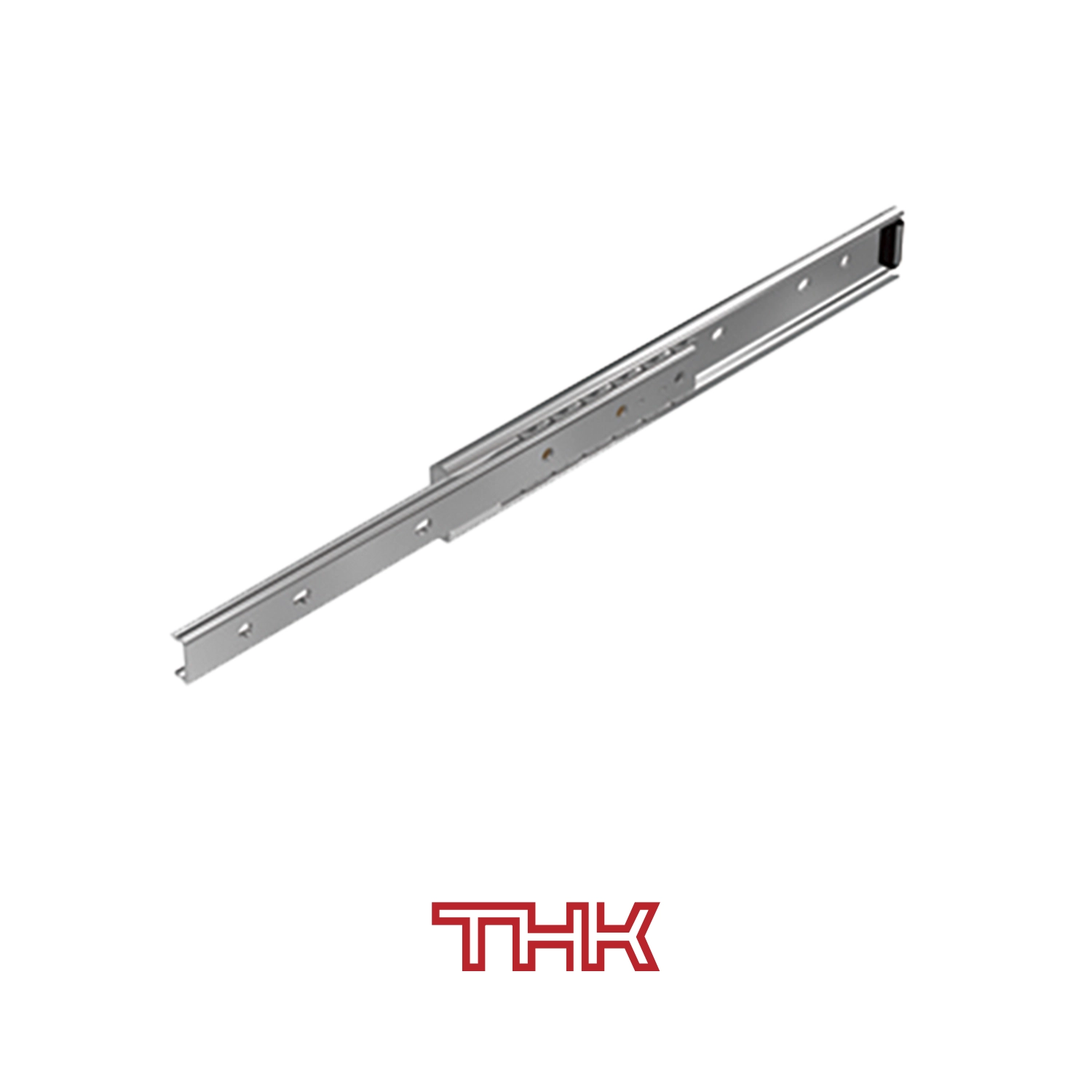

Single Slide Type: Models FBL, E
Double Slide Type:

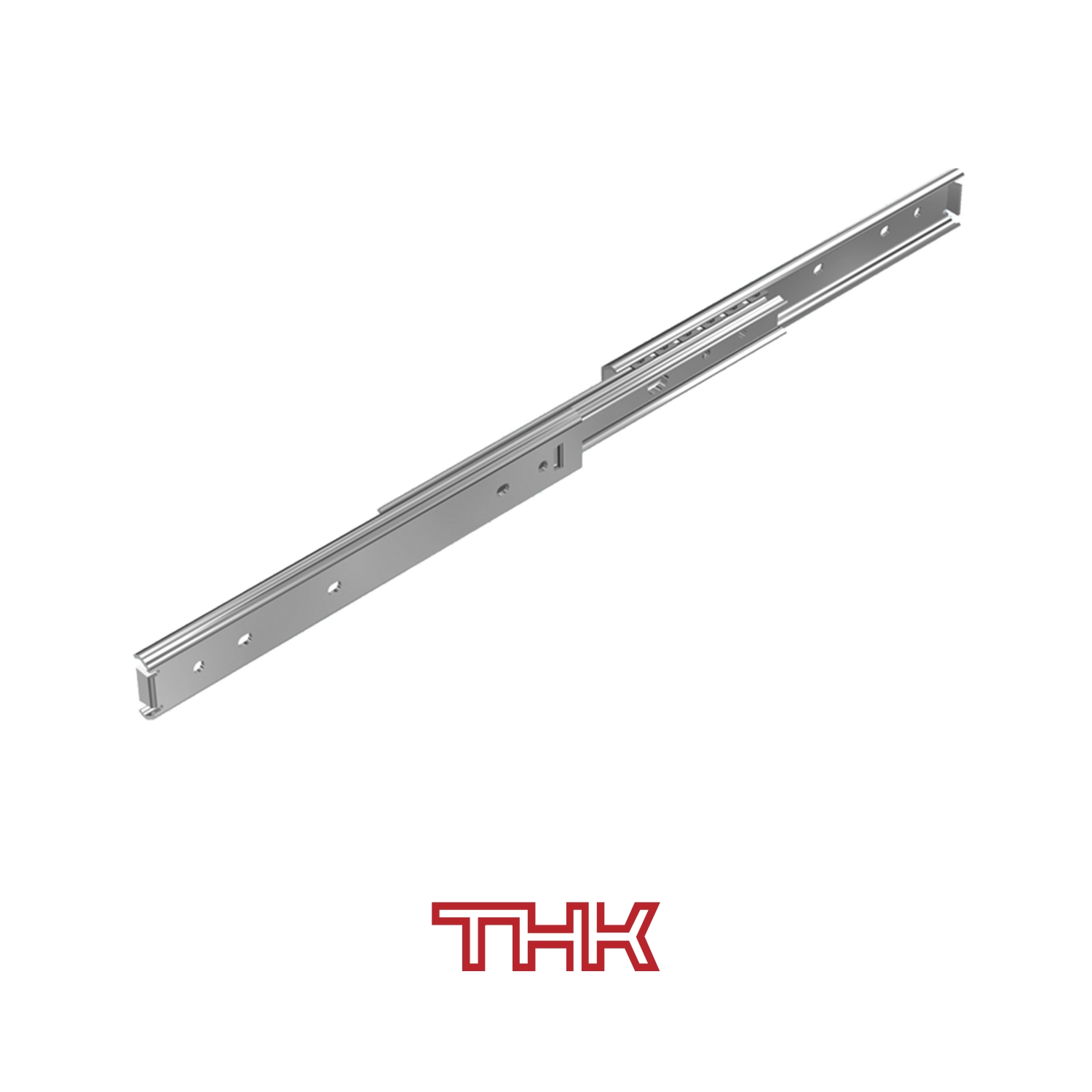

– FBL (Light Load)
– FBL (Medium Load)
– FBL (Heavy Load)

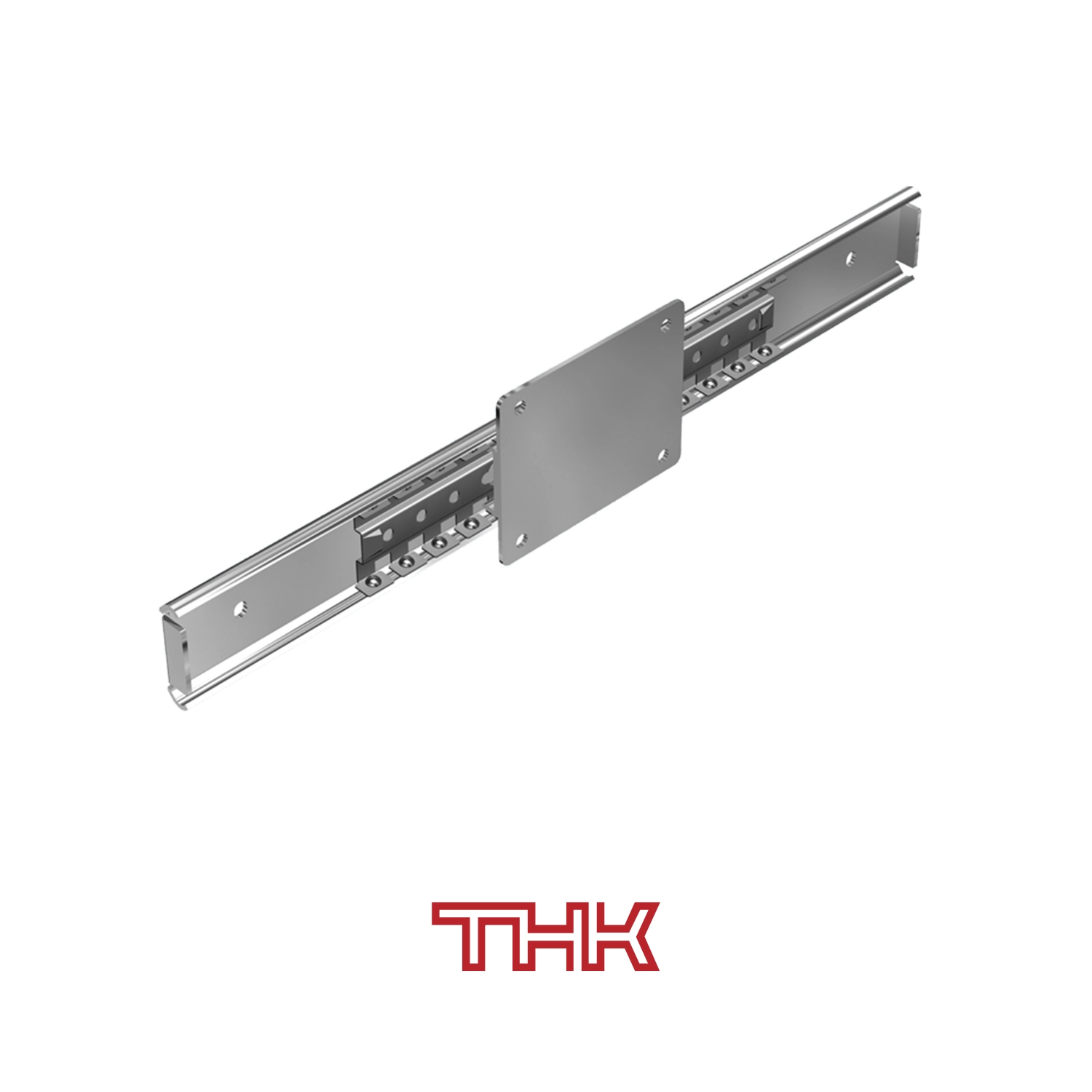

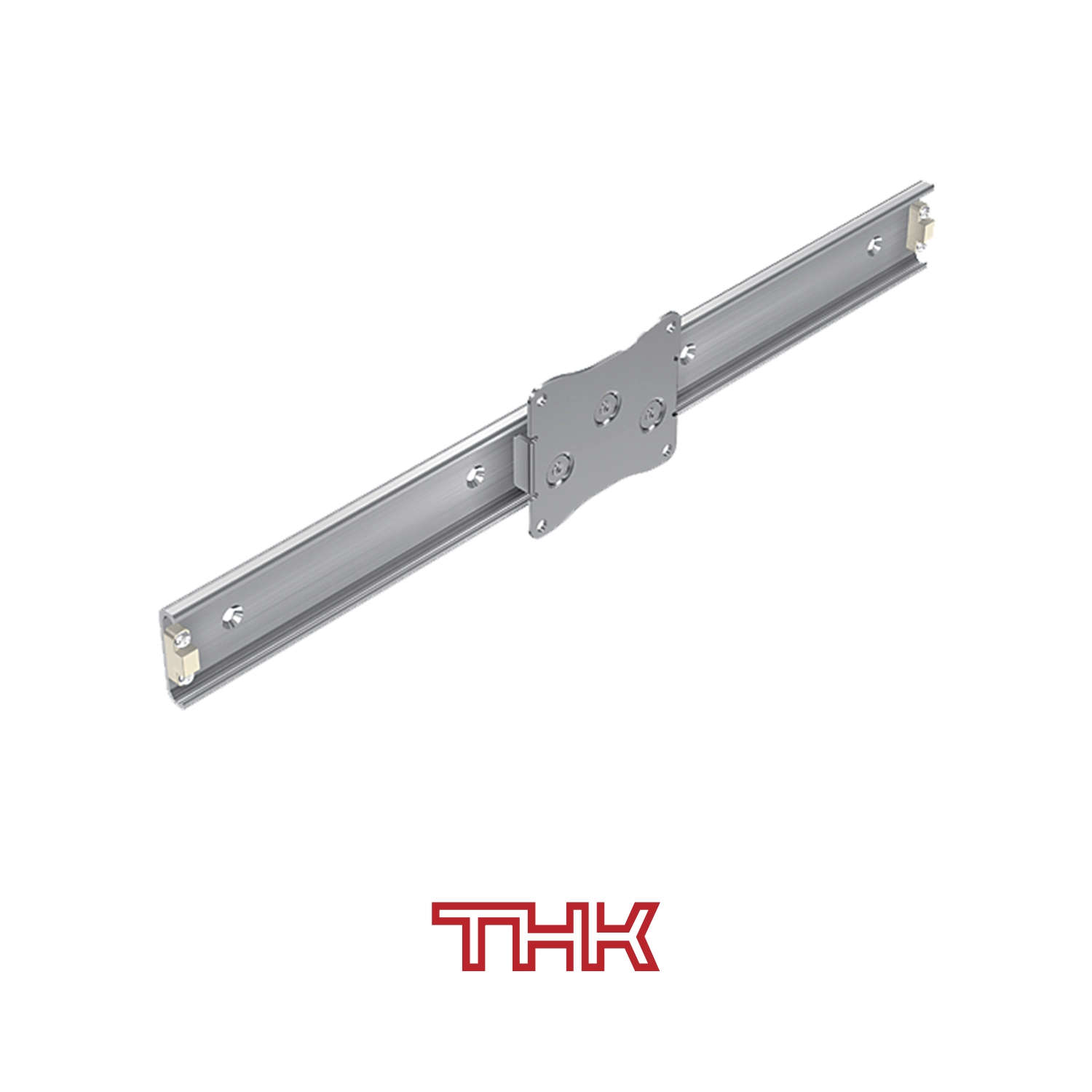

Linear Type Slide Rail: Models FBL, E
