Hyulim Robot Glass Transfer Robot
The Hyulim Robot Glass Transfer Robot is designed for automated handling and transfer of glass substrates in manufacturing environments. Available in both Vacuum and Atmospheric configurations, the series offers single- and dual-arm options with different axis configurations, glass sizes, Z-axis strokes, and payload capacities.

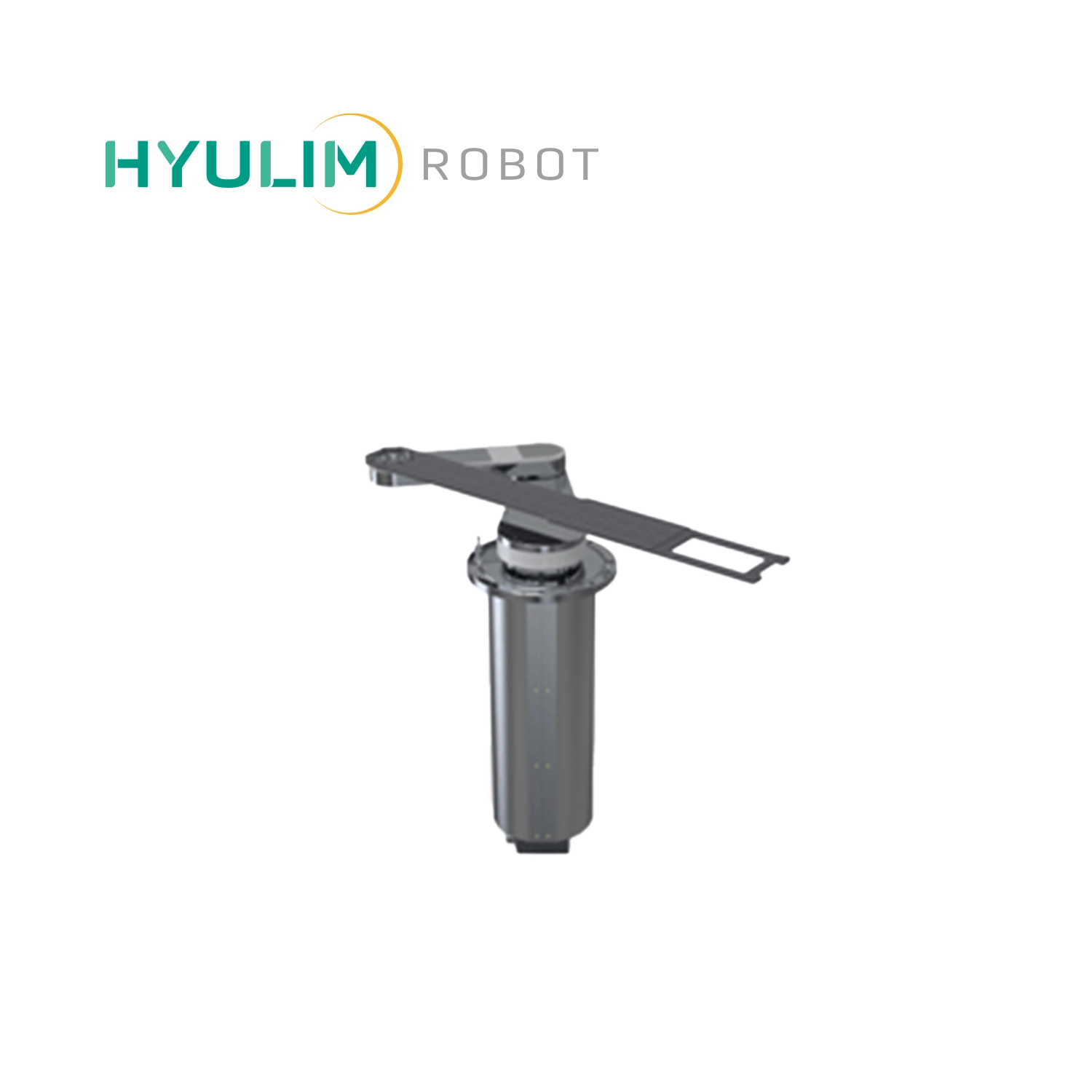

The Vacuum Type supports glass sizes from 3G to 8.6G, with models featuring 3- or 4-axis movement, Z-axis strokes of up to 680 mm, and payload capacities from 4 kg to 120 kg including the hand.
The Atmospheric Type supports 3G to 4G glass sizes and is available with single- or dual-arm configurations, as well as 3+1 axis options. Models provide Z-axis strokes from 400 to 1,000 mm and payload capacities of up to 10 kg including the hand.
