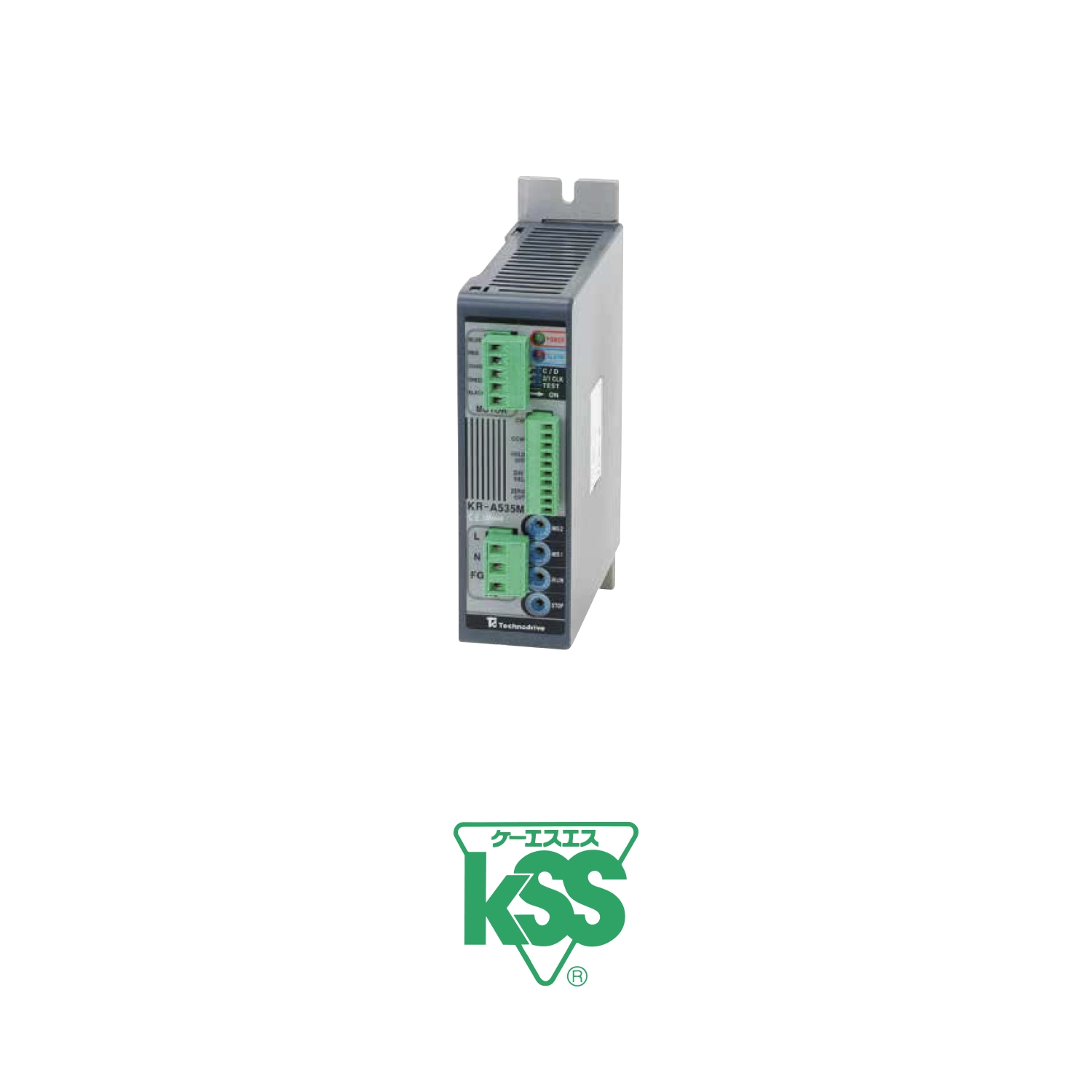

Stepping Motor Driver KR-A535M

The KR-A535M is a 5-phase micro-step stepping motor driver designed to provide low vibration and smooth motion in precision positioning applications.

It supports a wide range of micro-step interpolation settings and includes multiple control and monitoring functions for flexible operation.

Specifications
Driving type: Micro-step drive
Power supply: AC 100 to 220 V ±10%
Maximum current: 3A
Frequency: 50 / 60 Hz
Driving current: 0.4 to 1.4A per phase
Default setting at shipping: 0.75A per phase
Interpolation: 1/1 to 1/250
16 selectable channels
Functions:
– Pulse input switching
– Micro-step interpolation
– Automatic current down
– Driving current switching
– Built-in test function
– Driving power switching
